Our sliding windows deliver smooth operation and generous glass areas, available in two suites to match any build and budget. Compare the Signature and Essential ranges below.
Signature Range
Sliding Windows
Signature Range

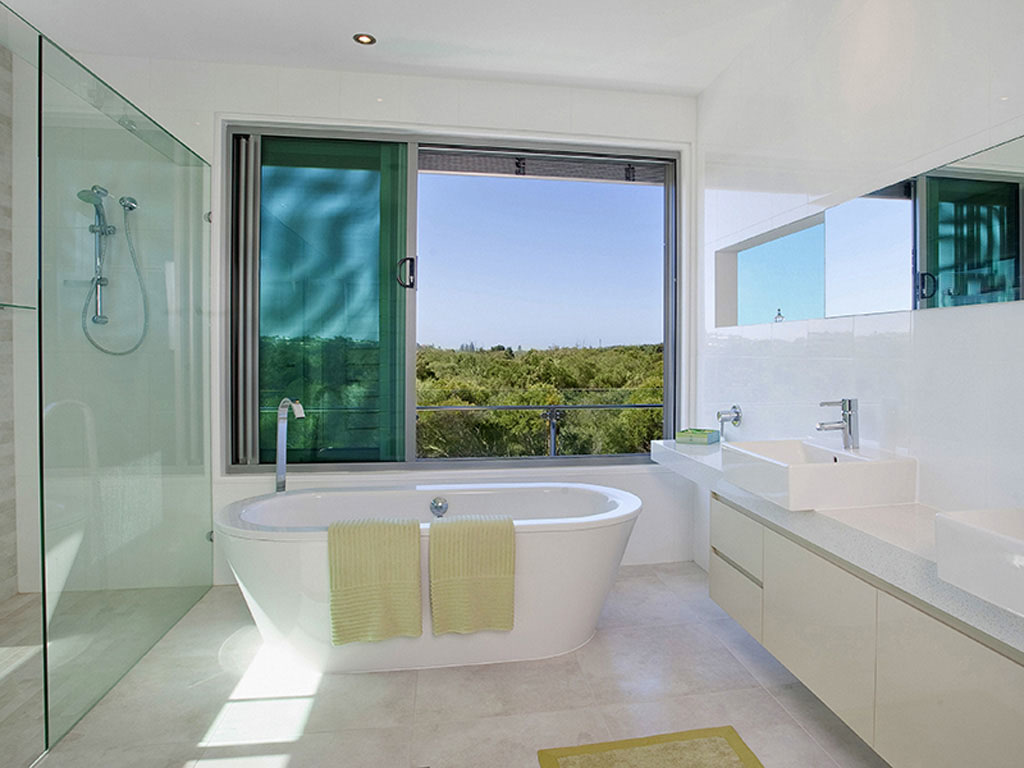

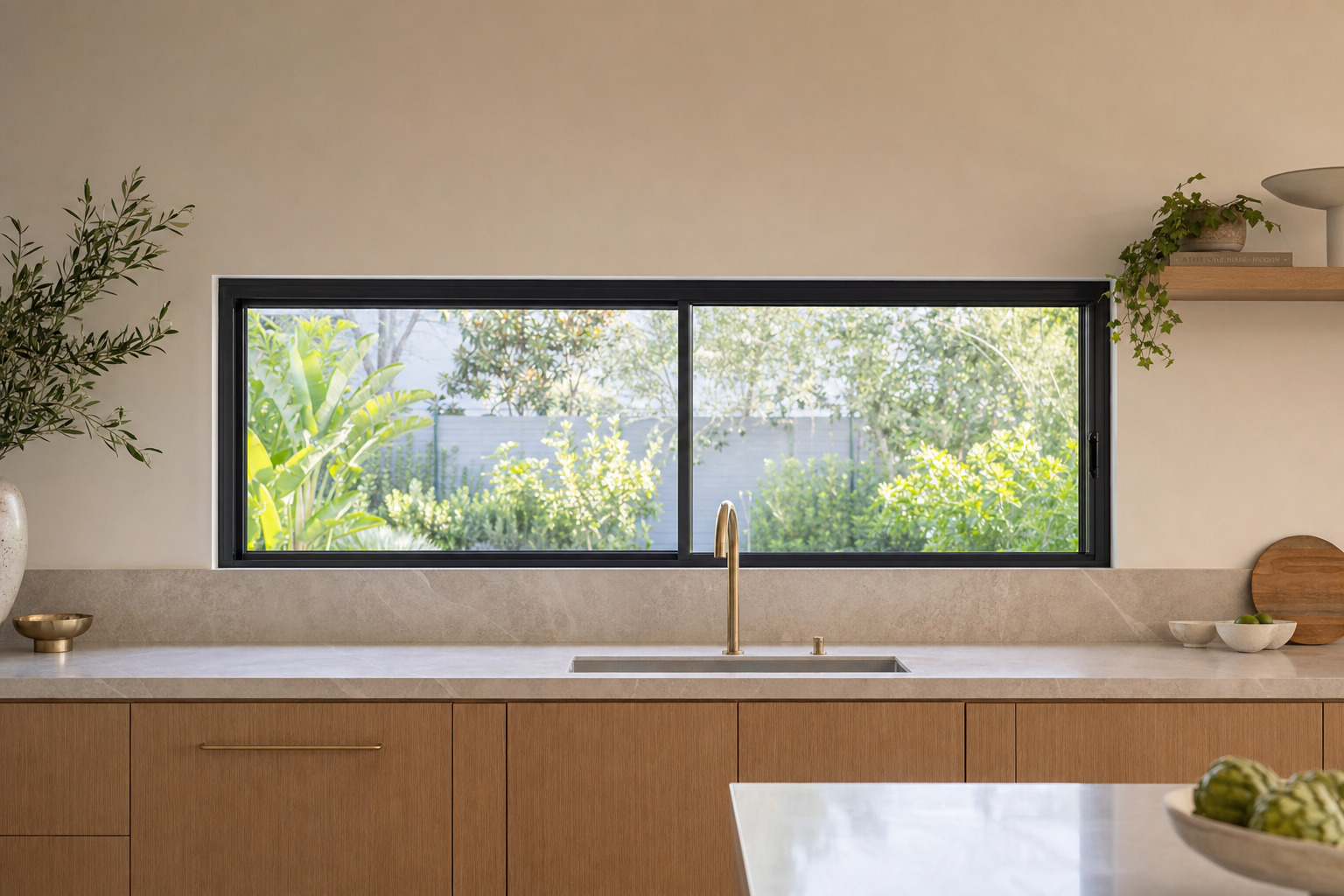

Our stylish, contemporary Signature sliding windows are designed to cater for all the needs of a modern home, including security, durability, strength, and expansive views. Smooth-gliding and easy to clean, these windows provide refreshing ventilation options by sliding open and closed horizontally. This style is perhaps the most common type found in Australian homes today. Available in larger sizes, these sliding windows can be installed in a range of spaces and configurations, including as servery windows.
Features & Benefits
- Shares the clean, contemporary look of other M.C.G Windows & Doors Signature products
- Euro track roller system ensures smooth sliding action
- Handle has mortice lock for superior security

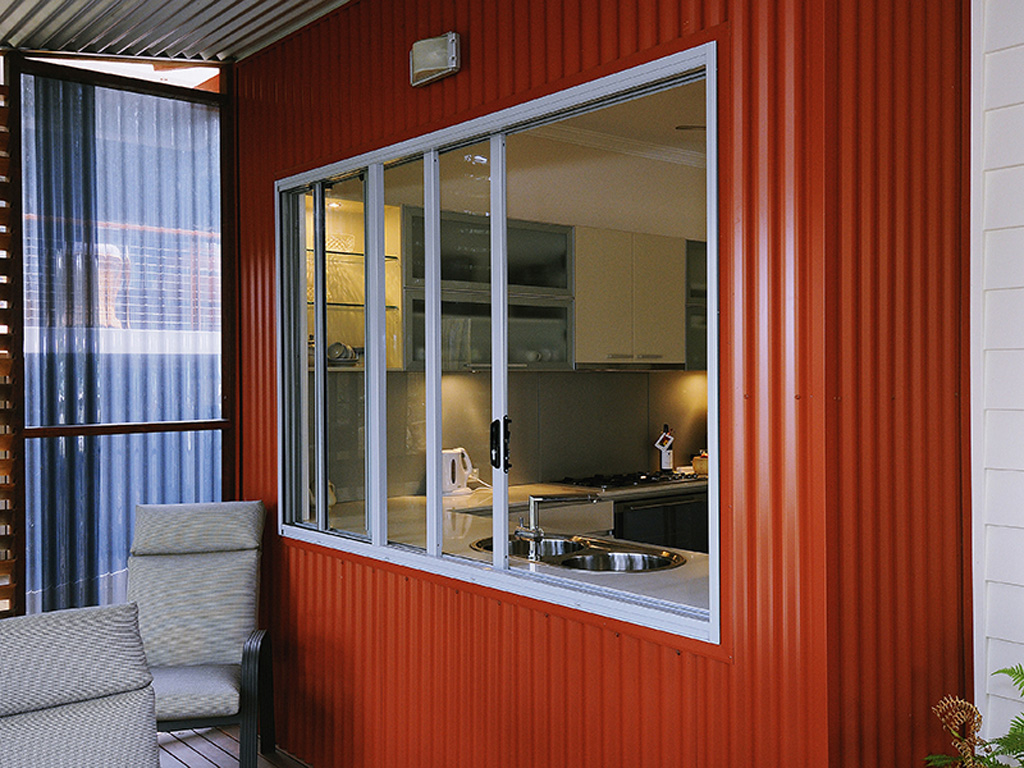

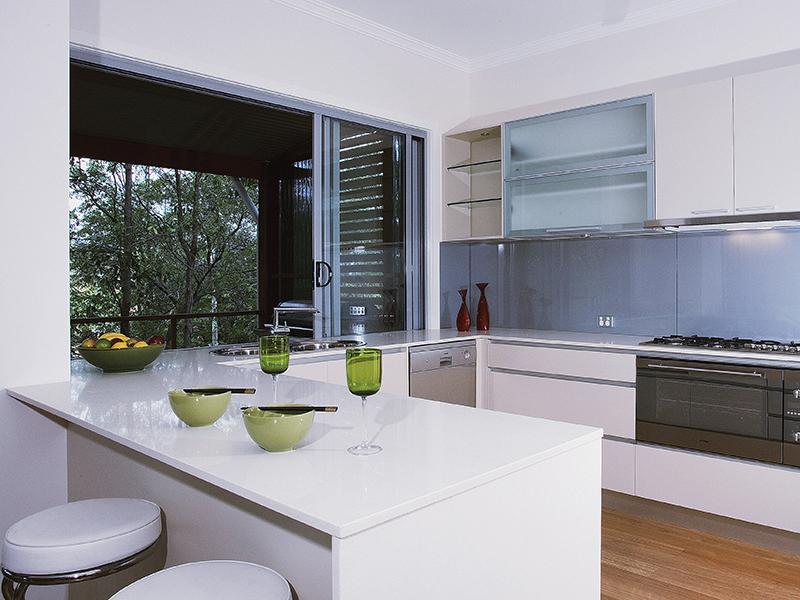

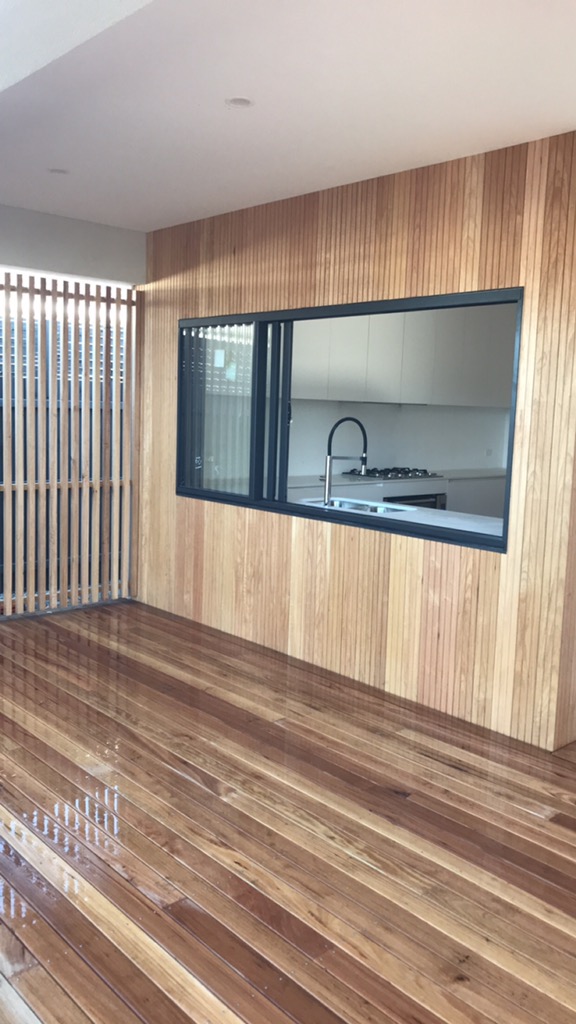

- Stacking configurations available for servery situations
- Integrated insect, safety and security options
- Santoprene carbon seals for improved sealing and UV stability
- Wider glazing pocket for superior acoustic and thermal performance
- No visible raw edges of aluminium from section machining
Performance Parameters
| Frame sizes | 100mm |
|---|---|
| Maximum window height | 2000mm (without low lites) |
| Maximum window width | 4800mm |
| Maximum panel width | 1350mm |
| Maximum panel weight | 100kgs |
| Maximum water rating | 600pa |
| Maximum wind rating | 6000Pa ULS |
| Maximum glass thickness | 12.76mm (single glazed) 18mm (IGUs) |
| Maximum acoustic rating | Rw33 |
| Maximum bushfire attack level | BAL 40 |
Hardware
- Signature sliding window lock and internal handle (standard colours: black, white, ultra silver)
Additional hardware colours available upon request at an additional cost.
Essential Range

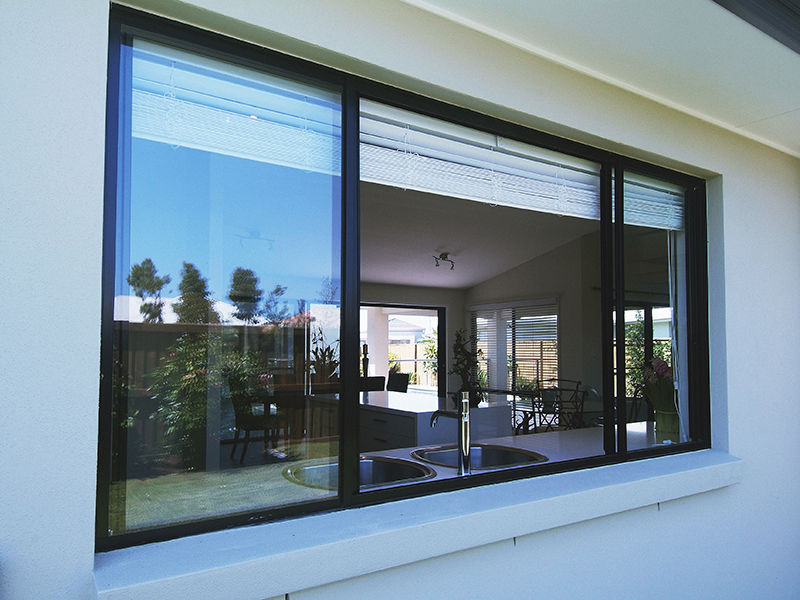

Our Essential aluminium sliding windows are designed to cater for all the needs of a modern home, including security, durability, strength, and expansive views. These windows provide refreshing ventilation options by sliding open and closed horizontally. This style is perhaps the most common type found in Australian homes today. Secure, easy to operate, and sensible but stylish, our Essential sliding windows are an option you’ll be sure to love.
Features & Benefits
- 52mm width frame makes cleaning a breeze – most vacuum heads fit easily in track
- Clear sight lines with concealed rails
- Integrated insect, safety and security screen options
- Optional keyed vent lock allows the window to be left partially open for ventilation
- Full joint sealing for superior weather proofing performance
Performance Parameters
| Frame sizes | 52mm (single glazed) 67mm (double glazed) |
|---|---|
| Maximum window height | 1500mm (without low lites) |
| Maximum window width | 3010mm |
| Maximum panel width | 1500mm |
| Maximum panel weight | 24kgs |
| Maximum water rating | 600pa |
| Maximum wind rating | 4500Pa ULS |
| Maximum glass thickness | 6.76mm (single glazed) 16mm (IGUs) |
| Maximum acoustic rating | Rw29 |
| Maximum bushfire attack level | BAL 40 |
Hardware

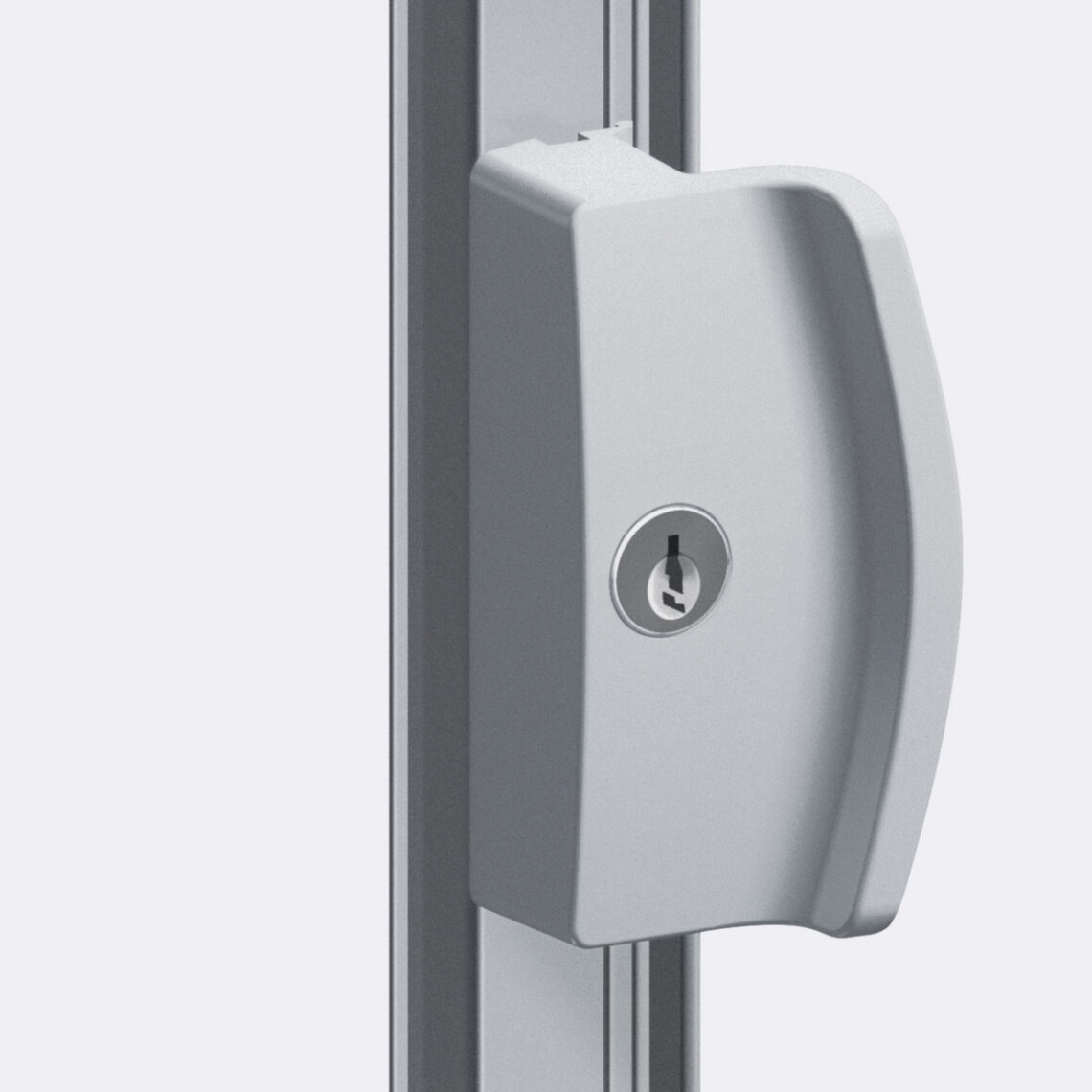

- Essential slider sash latch (standard colours: black, white, ultra silver)
Additional hardware colours available upon request at an additional cost.
